Aseptic 1500 BPH Benchtop Liquid Filling Machine Automatic
Aseptic 1500 BPH Benchtop Liquid Filling Machine Automatic For Biological Reagents
1500BPH Round Bottle Desktop Volumetric Liquid Filling And Capping Machine With Ceramic Pump For Biological Reagents
Key Features

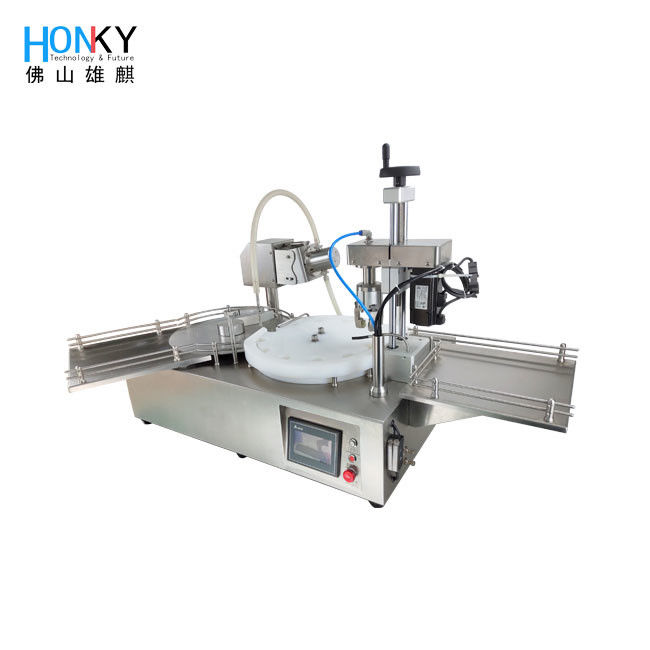

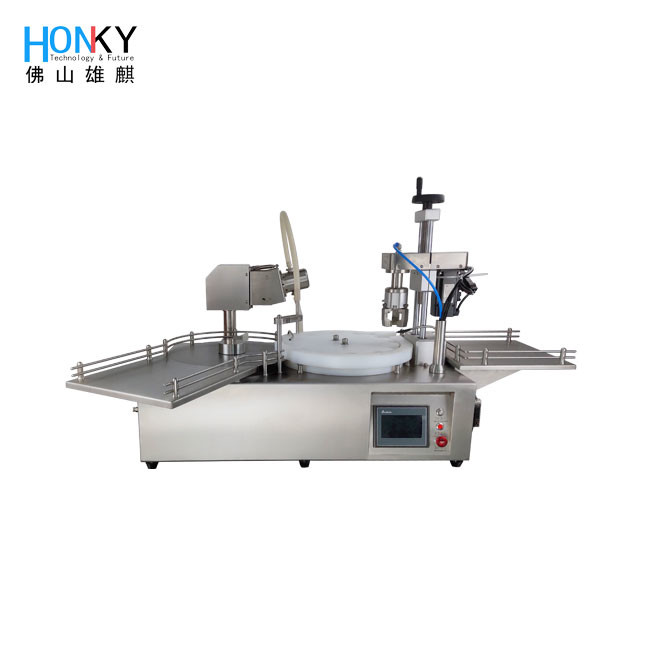

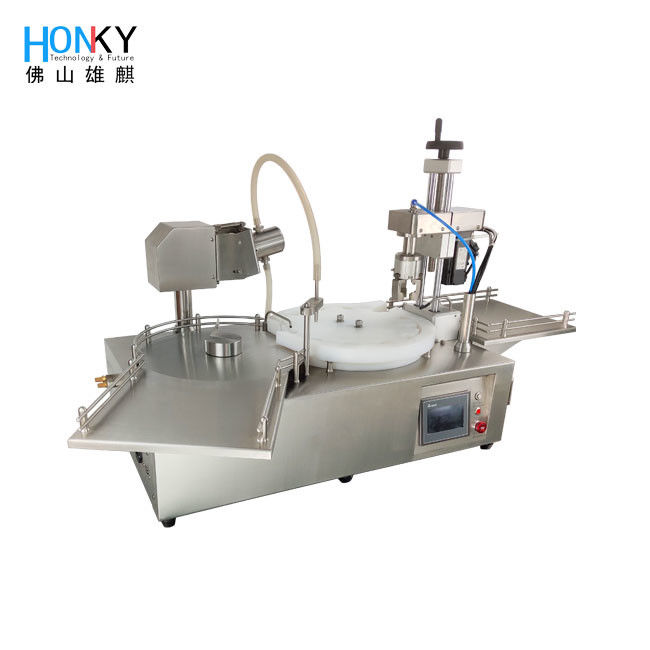

The XQGX-30A features a compact benchtop design specifically engineered for filling and capping essential oil bottles. It utilizes a high-precision ceramic pump to ensure exceptional filling accuracy. Constructed from 304 stainless steel, the machine offers easy cleaning and maintenance while achieving production speeds up to 1800 bottles per hour, making it ideal for small batch production. The integrated bottle feeder reduces labor requirements.
Technical Specifications
| Model |
XQGM-30A |
| Filling Range |
0.2-6ml | 1-12ml | 2-25ml |
| Filling Accuracy |
≤0.5% |
| Bottle Diameter |
φ20 - φ45mm |
| Manufacturing Speed |
12-22 PCS/min |
| Power |
AC 220V 50-60Hz 600W |
| Air Pressure |
0.4-0.5Mpa |
| Host Machine Dimensions |
1230*780*600(mm) |
Product Features
This equipment has been tested to meet the requirements of GMP certification.
The separation part utilizes a high-purity ceramic pump that controls injection volume per rotation by adjusting the pump head angle, delivering exceptional measuring accuracy and repeatable consistency.
The capping system employs SERVO torsional screwing technology to ensure proper lid tightness without damaging containers.
Fully benchtop design for simplified operation and space efficiency.
Ceramic Pump Advantages
- Low Friction, Increased Packing Life
- Extreme Wear Resistance
- Increased Corrosion Resistance
- Improved Anti-Galling Surface
Application Areas
- ODM and OEM products design
- Automatic manufacturing line design
- Cosmetic product packing
- Pharmaceutical and bio-reagent product packing
- Laboratory Liquid dispensing
- Lithium Battery Liquid dispensing
- Ceramic pump and ceramic pump part design
- Other material filling applications
Frequently Asked Questions
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine includes a 1-year warranty with lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We provide comprehensive user manuals and instructional videos covering installation, debugging, and operation procedures.
Q: What info will be needed to confirm machine models?
A: Required information includes: 1. Material status, 2. Filling range, 3. Manufacturing speed, 4. Requirements for the production process.
