고정밀 충진 솔루션에 초점을 맞추세요.
최고 품질 좋은 제품은 선택하기 위해 당신을 위한 것입니다.
우리와 연락하세요 : +8613178532062 honkyxq@aliyun.com
| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | XQ |
| 인증: | CE |
| 모델 번호: | XQLXG -2S |
| 최소 주문 수량: | 1 |
| 가격: | USD 20000-25000/ SET |
| 포장 세부 사항: | 나무로 된 포장(76*76*83cm 90KG) |
| 배달 시간: | 20 일 |
| 지불 조건: | 전신환 |
| 공급 능력: | 달 당 50 세트 |
| 채우는 범위: | 0.2-1.5ml 양두 | 속도: | 분당 3000 병 |
|---|---|---|---|
| 충전 재료: | 시약 | 힘: | AC 220V 50-60Hz 550W |
| 기능: | 충진과 세포막 | 차원(L*W*H): | 60*75*50cm |
| 강조하다: | 0.2번 밀리람베르트 액 충전과 세포막 Machine,1.5ml 액 충전과 세포막 Machine,550W 양두 액 충전 기계 |
||
Reagent 550W Liquid Filling And Capping Machine With Double Head
2400BPH Centrifuge Tube Volumetric Liquid Filling And Capping Machine With Ceramic Pump For Biological Reagents
Characteristic

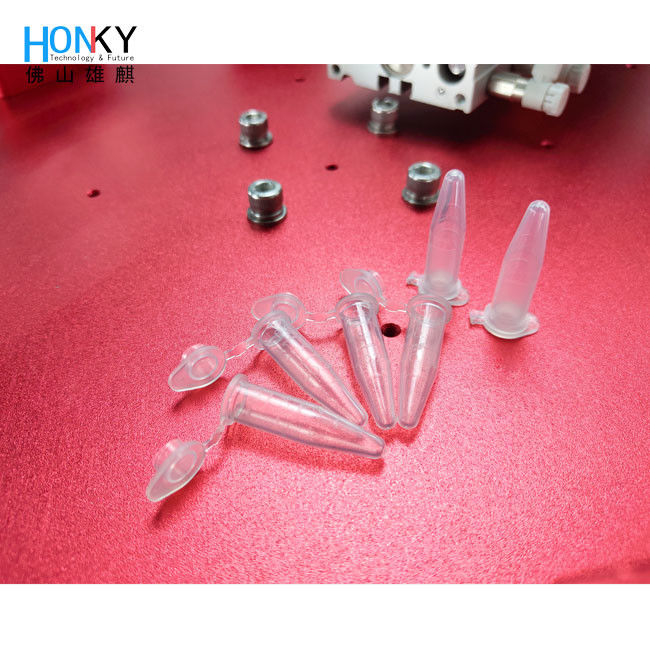

XQLXG -2S applies a semi-automatic desktop filling and capping design, specially designed to fill and cap the Centrifuge Tube. The filling pump applies a high-precision ceramic pump to ensure filling accuracy. The appearance material is 304 stainless steel which is easy to clean. The filling speed is up to 3000 bottles per hour which are mainly for the lab to finish the small batch production. Special design for the cap pressing to ensure a low cap damage rate.
Technical data
| Model | XQLXG-2S |
| Pump type | Ceramic pump |
| Filling accuracy | ≦±0.5% |
| Filling range | 0.2-1.5ml |
| Manufacturing speed40 | PCS / minute |
| Power | AC 220V 50-60Hz 550W |
| Air pressure | 0.4-0.6Mpa |
| Machine size | 710*660*670mm (Main machine roughly) |

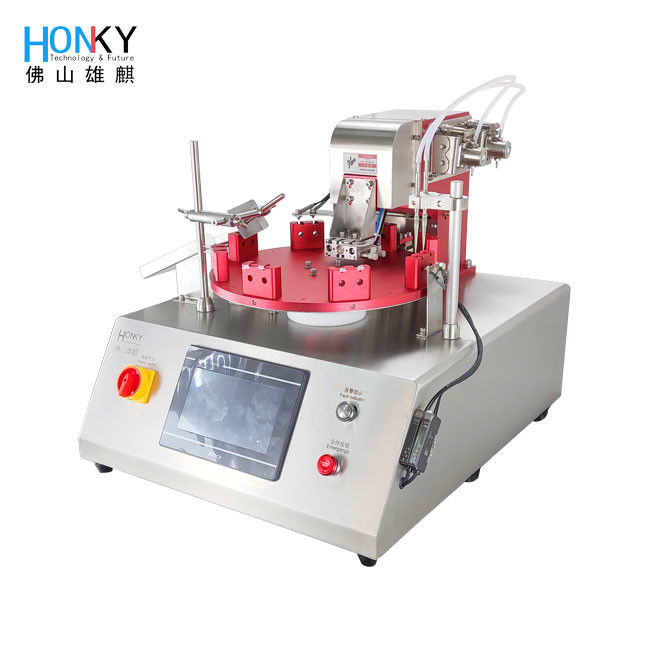

Double Head Liquid Filling Machine display
This equipment has been tested to meet the requirements of GMP certification.
The separation part adopts high purity ceramic pump, which controls the injection volume of each lap by adjusting the angle of the pump head, and has extremely high measuring accuracy and repeated consistency.
Fully desktop design to make operation easy.
Advantages for using the ceramic pump:
1. Low Friction, Increased Packing Life
2. Extreme Wear Resistance
3. Increased Corrosion Resistance
4. Improved Anti-Galling Surface
Application area
1. ODM and OEM products design;
2. Automatic manufacturing line design;
3. Cosmetic product packing;
4. Pharmaceutical and bio-reagent product packing;
5. Laboratory Liquid dispensing;
6. Lithium Battery Liquid dispensing;
7. Ceramic pump and ceramic pump part design;
8. Other area's material filling;
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
