| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | XQ |
| 인증: | CE |
| 모델 번호: | XQX1/X2 |
| 최소 주문 수량: | 1개 세트 |
| 가격: | USD 500-2000 Per Set |
| 포장 세부 사항: | 우든 패킹 |
| 배달 시간: | 10일이요 |
| 지불 조건: | 전신환 |
| 공급 능력: | 달 당 100개 세트 |
| 응용 범위: | 메디컬, 화학 제품, 성형 기계류 & 하드웨어 액서세리 | 채우는 범위: | 4ul-25ml |
|---|---|---|---|
| 재료: | 스테인레스 강 316L과 세라믹 | 세라믹 부분 소재: | 고순도 세라믹 (Al2O3 또는 ZrO2) |
| 적합합니다: | 도자기 펌프 충진과 충전기 상승 | 양 조정: | 설명서 |
| 강조하다: | Pump,SS316L 요업 플런저 펌프를 충전하는 Pump,25ml 세라믹을 충전하는 SS316L 세라믹 |
||

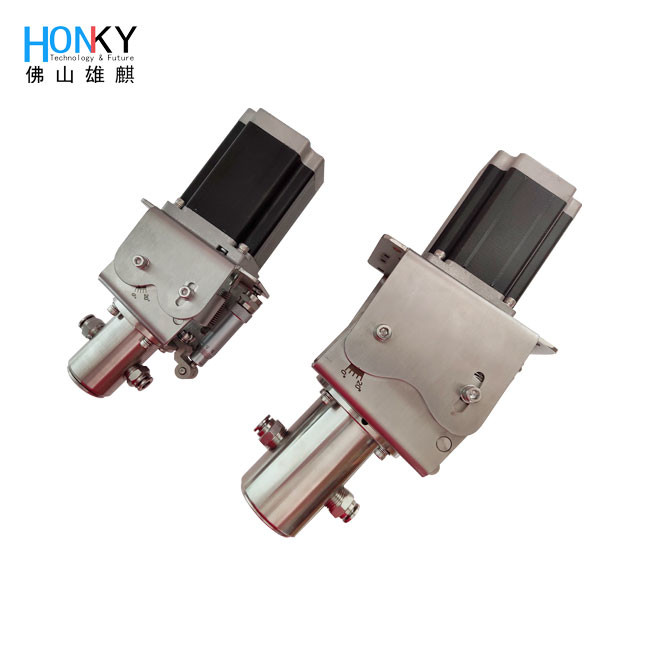

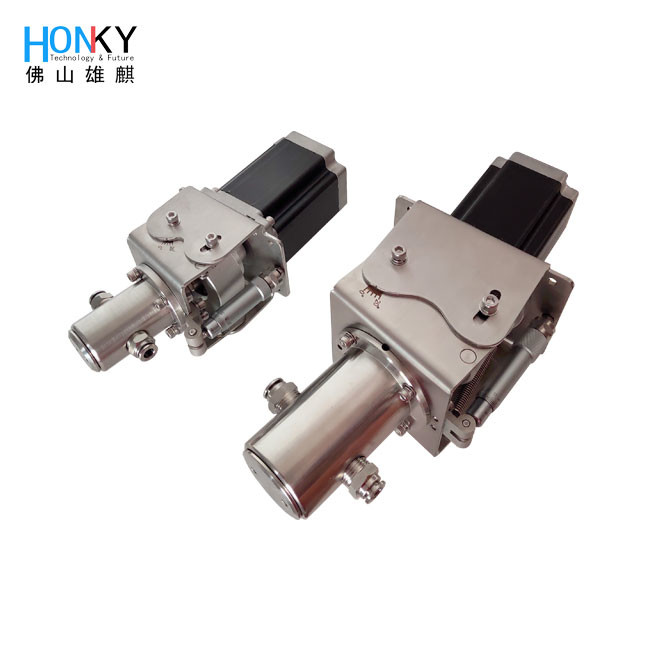

SS316L Ceramic Filling Pump
High Precision Ceramic Filling Pump Integration For Liquid Dispensing Filling Machine Accessory
The rotary ceramic plunger pump assembly is a plunger-type precision metering pump used for metering, filling or quantitatively filling chemical liquids and high-purity liquids. During the rotation of the plunger, Based on the adjustable pump head angle, the axial linear motion is generated to realize the precise adjustment of the stroke to control the input and output.
Features:
1. The metal part of the contact material is made of 316 stainless steel, the pump body has better corrosion resistance, and the operation of the pump will not produce trace impurities to pollute the liquid. Detachable pump head plunger group
Parts for cleaning and maintenance.
2. This series of metering pumps have very high metering accuracy and repeat consistency, and the accuracy is better than plus or minus five thousandths.
3. The X1 series is based on the lateral differential angle, and the adjustment is more sensitive. The X2 series is the most widely used and has a simple structure.
Application:
It can be used for matching and modification of the filling part of the packaging machine. Suitable for filling electrolyte, medicine, biochemical reagent, chemical liquid, essential oil, essence, lotion, perfume, finger
Homogeneous liquid materials with medium and low viscosity such as nail polish.
Parameter
| Item No. | -3 | -6 | -9 | -12 | -15 | -18 | -21 | -24 | -27 |

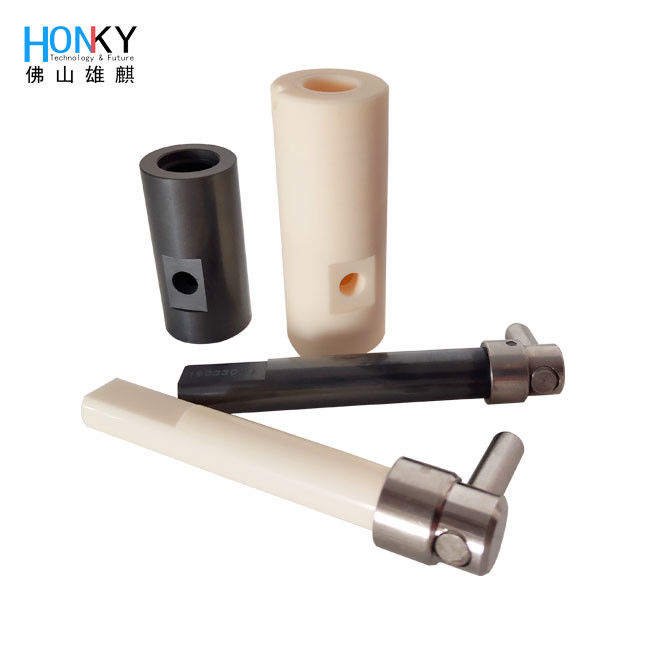

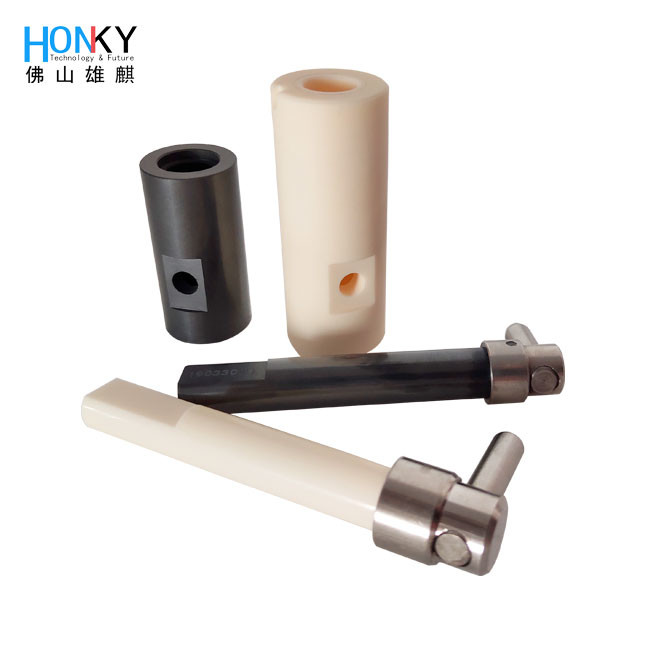

| Pump Material | Ceramic parts: high purity alumina(Al2O3), zirconia(ZrO2), silicon carbide(SiC), etc |
||||||||
Metal part: 316L stainless steel |
|||||||||
| Filling Range | 4-80ul | 10-140ul | 20-240ul | 50-700ul | 0.2-1.5ml | 0.2-2.9ml | 0.6-6ml | 1-12ml | 2-25ml |
| Bore Diameter | Φ4 | Φ5 | Φ7 | Φ10 | Φ13 | Φ15 | Φ22 | Φ25 | Φ36 |
RPM |
450 | 350 | 300 | 250 | 200 | ||||
| Accuracy | Better than ±0.5% | ||||||||
| Motor Type | 2 phase 4 line No.42 | 2 phase 4 line No.57 | 2 phase 4 line No.86 | ||||||
| Power Supply | AC220V 50/60Hz (110V can be customized) | ||||||||
| Power Rate | 75w | 75w | 75w | 150w | 150w | 150w | 240w | 240w | 240w |
Product display
Application area
1. ODM and OEM products design;
2. Automatic manufacturing line design;
3. Cosmetic product packing;
4. Pharmaceutical and bio-reagent product packing;
5. Laboratory Liquid dispensing;
6. Lithium Battery Liquid dispensing;
7. Ceramic pump and ceramic pump part design;
8. Other area's material filling;
Why choose HonkyTech?
Rich Experience
There is skilled engineering staff with many years of experience, many of them have been engaging in this precision filling industry for many years.
Quality Assurance
With a strict and effective quality control system, our products are CE approved, and we have ROHS Certificate.
In Stock
We keep stock of ceramic pump parts, electronic components, filling machine spare parts, etc. ready for immediate delivery.
Mature Technology
With numerous in-house service technicians and engineers, HONKY is ready to assist when you need technical support.
About HonkyTech
Foshan Xiongqi Intelligent Technology Co., Ltd(HONKY) is a leading manufacturer of all kinds of fluid filling solutions. The main products contain the ceramic pump, ceramic pump filling line series, ceramic pump spare parts or filling equipment, filling solution ODM, etc. Our products have a good reputation for quality, reliability, and efficiency.
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
