| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | XQ |
| 인증: | CE |
| 모델 번호: | XQHB 시리즈 |
| 최소 주문 수량: | 1개 세트 |
| 가격: | USD 500-2000 Per Set |
| 포장 세부 사항: | 우든 패킹 |
| 배달 시간: | 10일이요 |
| 지불 조건: | 전신환 |
| 공급 능력: | 달 당 100개 세트 |
| 응용 범위: | 메디컬, 화학적, 기계류 & 하드웨어 액서세리와 성형 | 펌프 범위: | 1-50ml |
|---|---|---|---|
| 재료: | 스테인레스 강 316L과 고순도 세라믹 | 세라믹 부분 소재: | 고순도 세라믹 (Al2O3 또는 ZrO2) |
| 적합합니다: | 수직이거나 전통적 충전기 펌프 상승 | 양 조정: | 수동 / 에어 펌프 |
| 강조하다: | Pump,Al2O3 도자기 펌프를 충전하는 Pump,Al2O3 통합 세라믹을 충전하는 ZrO2 통합 세라믹 |
||
Al2O3 ZrO2 Integration Ceramic Filling Pump For Cream Paste Filler
High Precision Ceramic Filling Pump Integration For Cream Paste Dispensing Filling Machine Accessory
The ceramic plunger pneumatic pump assembly adopts a precision ceramic plunger design, which is suitable for the quantitative infusion of medium and high viscosity liquids, creams, and creams (1000-100,000CPS) and materials containing certain particles.
Features:
1. The tail screw fine adjustment structure makes the pump have high metering accuracy and repeat consistency, and the accuracy is better than ±0.5%.
2. The metal part of the contact material is made of 316L stainless steel, which has better corrosion resistance.
3. The pump body is connected in a quick-disassembly mode, which is convenient for disassembly, assembly, and cleaning, and meets the cleaning requirements of food hygiene standards.
Application:
It can be used for the matching and transformation of the filling part of the packaging machine. It is very suitable for filling cream, honey, electrolyte, medicinal solution, biochemical reagent, chemical liquid, essential oil, essence, lotion, perfume, nail polish, and other medium and high viscosity homogeneous liquid materials.
Parameter
| Model | XQHB-10 | XQHB-20 | XQHB-50 | ||
| Pump head | High purity ceramics | ||||
| Filling accuracy | ≦±0.5% | ||||
| Filling range | 1-12ml | 2-25ml | 5-50ml | ||
| Manufacturing speed | 0-40 Bottle/min | ||||
| Size of the pump | 250*150*400 cm | ||||
| Power | Full air driven | ||||
| Air pressure | 0.4-0.6Mpa | ||||

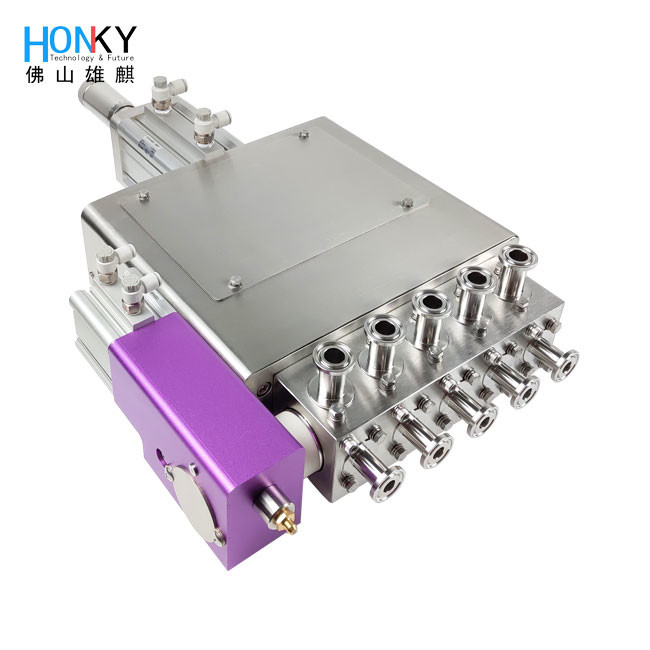

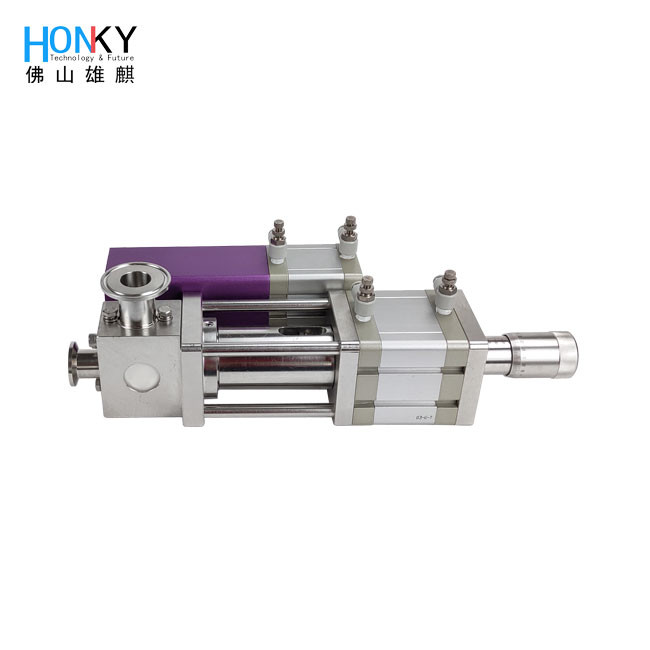

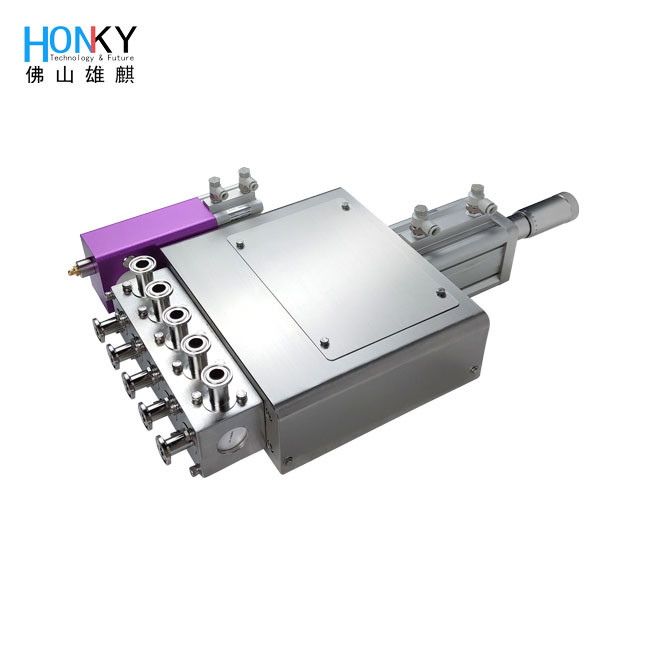

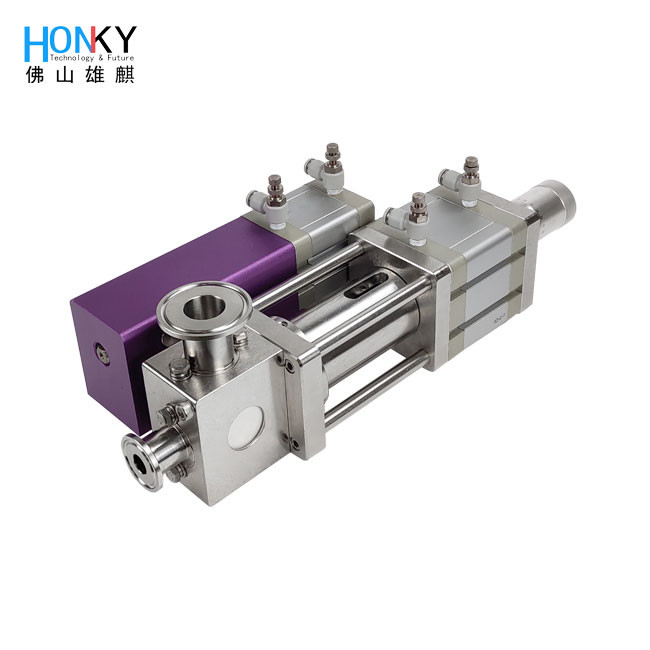

Product display
Advantages for using the ceramic:
1. Low Friction, Increased Packing Life
2. Extreme Wear Resistance
3. Increased Corrosion Resistance
4. Improved Anti-Galling Surface
Application area
1. ODM and OEM products design;
2. Automatic manufacturing line design;
3. Cosmetic product packing;
4. Pharmaceutical and bio-reagent product packing;
5. Laboratory Liquid dispensing;
6. Lithium Battery Liquid dispensing;
7. Ceramic pump and ceramic pump part design;
8. Other area's material filling;
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
