분 당 스테인레스 강 SUS316 자동차 액 충전 기계 50 물병

Stainless Steel SUS316 Auto Liquid Filling Machine 50 Bottle Per Minute

Glass Bottle Plastic bottle Automatic Filling Machine With Ceramic Pump For Skincare Cream Paste

Characteristic

XQSRG-2S is designed for various cosmetic bottles, which can be filled and capped for liquid and cream Paste products. Its working method is manual bottle feeding, automatic filling, automatic stopper screwing, and automatic bottle discharge all in one rotary table. The filling part uses XQQG ceramic piston pumps to ensure filling accuracy, fast filling speed, and wide range. The capping part adopts the servo capping method, and the torque is adjustable to prevent the cap from being damaged. The self-developed system is to make the whole machine operation easy. The whole machine has a compact design. What's more, the machine can connect the conveyor to finish the packing in the box process or quality check process.

Characteristic
A. Material contact parts are made of stainless steel SUS316.
B. Adopt photoelectric control, fast and accurate automatic quantitative filling; The rotary valve adopts ceramic material without sealing ring, cleaning without dead angle.
C. Using motion controller and HMI man-machine operation interface, parameters can be called on the operation interface with one key without manual adjustment of the mechanical position.
D. Servo system is adopted, with high filling precision and precise positioning.
E. The filling action is fast so that the bottle can be filled immediately, and the production efficiency is high.
F. The whole machine adopts a stainless steel frame structure, transparent PC or plexiglass material frame, SUS304 stainless steel countertop.
G. Ultrasonic liquid level control.
H. Adopting motion control system and servo motor for tracking capping, the bottle does not need to be stopped, and the position of the bottle is automatically tracked for automatic capping, and the torque can be adjusted

Technical data

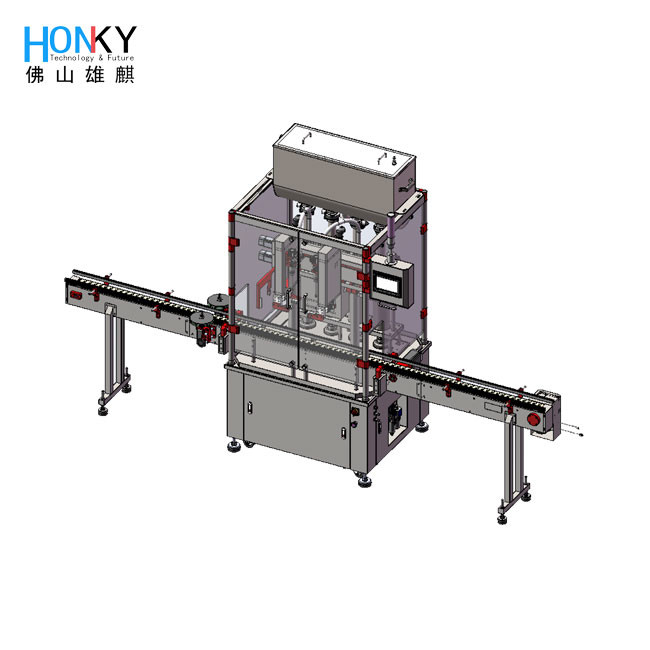

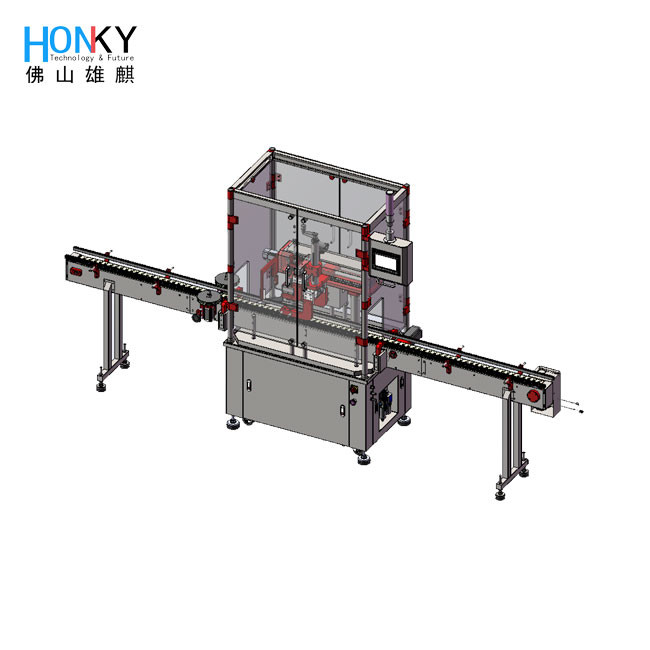

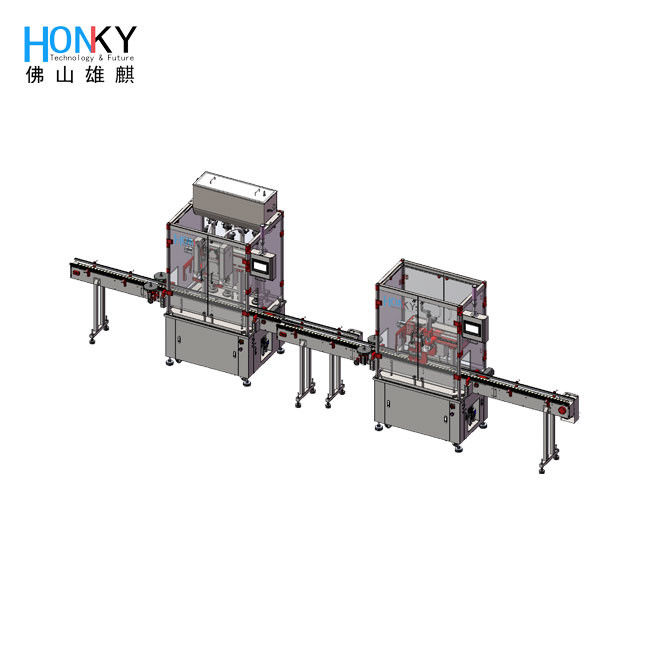

Product display
