Name: Multiple Heads Ceramic Filling Pump with 0.4KW Power and 1-10ml to 5-50ml Filling Size for High Viscosity Liquids
Brand: Foshan Xiong Qi Intelligent Technology Co., Ltd.
SKU: XQHB 시리즈
Price: 1,250.00 USD
Availability: InStock

홈 > 상품 > 세라믹 충전재 펌프 >

Multiple Heads Ceramic Filling Pump with 0.4KW Power and 1-10ml to 5-50ml Filling Size for High Viscosity Liquids

0.4KW Ceramic Filling Pump

1-10ml to 5-50ml High Viscosity Filling Pump

30-45 CPM Precision Ceramic Pump

원래 장소:

중국

브랜드 이름:

인증:

모델 번호:

XQHB 시리즈

문의하기

견적 요청

제품 상세정보

어플리케이션:

화학적이고 성형 메디컬

채우는 크기:

1-10ml에서 5-50ml

재료:

고순도 세라믹

사용:

수직 또는 기존 충전기 펌프 업그레이드

조정:

매뉴얼 조절

구동 모드:

공기와 서보 모터

차원:

판촉활동

소음:

65dB 이하

힘:

0.4kW

강조하다:

0.4KW Ceramic Filling Pump

1-10ml to 5-50ml High Viscosity Filling Pump

30-45 CPM Precision Ceramic Pump

지불과 운송 용어

최소 주문 수량

1세트

가격

USD 500-2000 Per Set

포장 세부 사항

나무 포장

배달 시간

10 일

지불 조건

티/티

공급 능력

한 달에 100 세트

High Precision Ceramic Piston Pump with ±0.5% Accuracy and ±0.1% Repeatability for Food-Grade Applications

최상의 가격을 얻으세요

비디오

High Precision Ceramic Piston Filling Pump with 40-50 Times/Min Speed and 0.4-0.6MPA Air Pressure for Accurate Filling

최상의 가격을 얻으세요

비디오

High-Precision Ceramic Piston Filling Pump with 1-50ml Adjustable Range and Better than ±0.5% Accuracy

최상의 가격을 얻으세요

비디오

내산성 316L 스테인리스 스틸 및 1-50ml ~ 3-300ml 충전 범위를 갖춘 고압 세라믹 충전 펌프 (산업용 액체 충전 시스템용)

최상의 가격을 얻으세요

문의하기

지금 연락하세요

제품 설명

Multiple Heads High Viscosity Cream Paste Liquid Filling Pump System

The HBD-RN Series Multi-Column Ceramic Pump Integration features precision ceramic plunger design, engineered for medium to high viscosity liquids (1000-100,000CPS) including homogeneous creams and materials containing particles. This servo-controlled system delivers exceptional filling accuracy (±0.8%) and repeat consistency through automated volume setting via control screen.

Key Features

Precision ceramic plunger design for high-viscosity materials
Servo screw control for automated volume setting
Measurement accuracy better than ±0.8%
316L stainless steel and ceramic construction for superior corrosion resistance
Ideal for materials ranging from 1-50ml

Industry Applications

Designed for integration with packaging machinery, this system is ideal for filling creams, honey, electrolytes, medicinal liquids, biochemical reagents, essential oils, perfumes, and other medium-to-high viscosity liquids. Compatible with multi-station bag packing machines, multi-row packaging machines, and blister machines.

Technical Specifications

Model	Plunger diameter (mm)	Stroke (mm)	Volume (ml)	Accuracy	Speed (CPM)
HBD-10R3	20	50	1-10	±0.5-1%	30-45
HBD-30R3	30	-	3-30	±0.5-1%	30-45
HBD-50R3	38	-	5-50	±0.5-1%	30-45

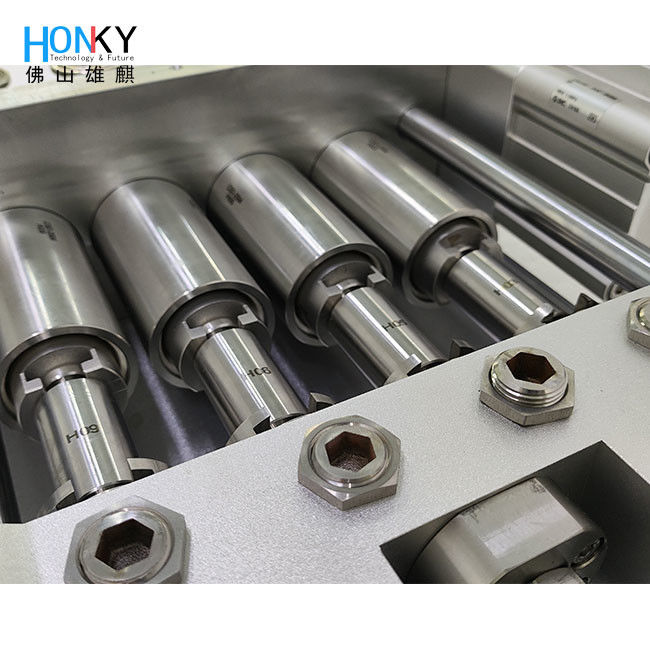

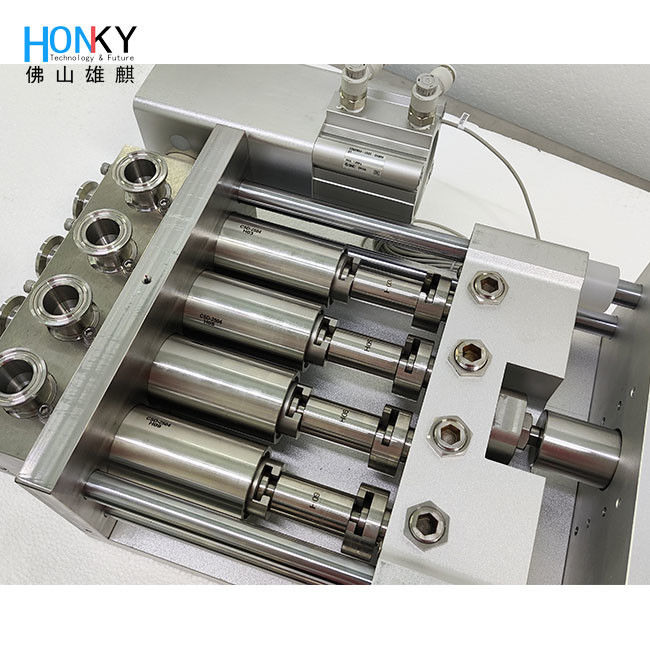

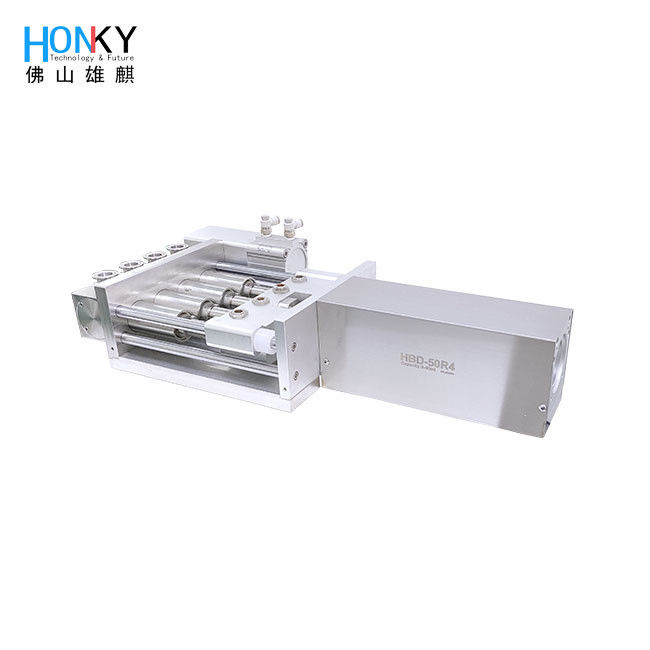

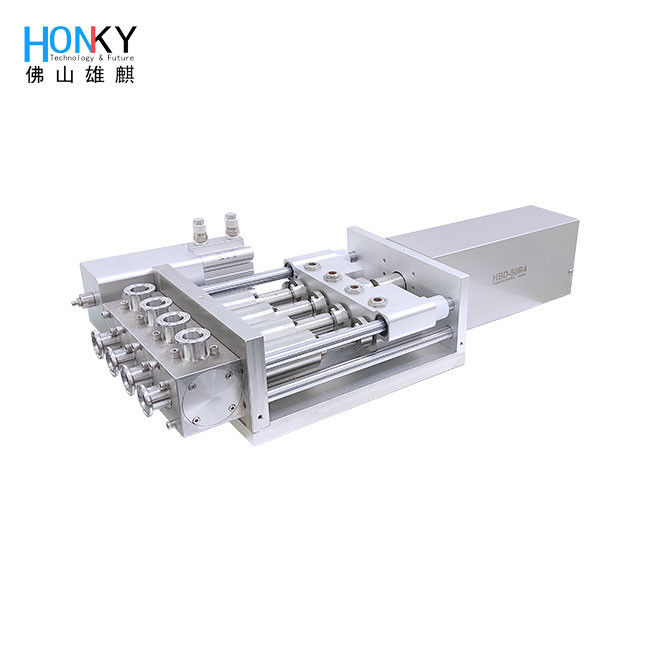

Product Display

Frequently Asked Questions

Q: Do you offer OEM services, I am a distributor from overseas?

A: Yes, we provide both OEM services and technical support for international distributors.

Q: How about the after-sales service?

A: All machines come with a 1-year warranty and lifetime after-sale service with technical support.

Q: What are your Installation Services?

A: We provide comprehensive installation support including user manuals, instructional videos, and guidance for machine setup, debugging, and operation.

Q: What info will be needed to confirm machine models?

A: Please provide: 1) Material status, 2) Filling range, 3) Manufacturing speed, 4) Production process requirements.

About HonkyTech

Foshan Xiongqi Intelligent Technology Co., Ltd (HONKY) is a leading manufacturer of fluid filling solutions. Our product range includes ceramic pumps, filling line series, spare parts, and custom ODM solutions. Recognized for quality, reliability, and efficiency, our products serve diverse industrial applications worldwide.
